Introduction
We can provide different models of truck-mounted concrete mixers, such as 6 m3, 8 m3, 9 m3, 10 m3, 12 m3, 14 m3 and 16 m3. Our mixer trucks can be matched with any special domestic and foreign chassis according to customers’ needs. The driving system of the mixing drum adopts the closed-type hydraulic system pump. Its motor and reducer are imported from the US and Germany with original packaging.

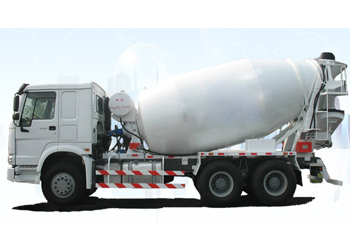

Applications of 8 m3 Concrete Mixer
Our 8 m3>mixer trucks are mainly used for mixing and transporting concrete mixture, asphalt and other materials. It is widely used in construction industry both home and abroad.
Features
1. This concrete mixer can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed.
2. Our 8m3mixer trucks are preferred for smart appearance, good performance and convenient operating system.
3. 8 m3concrete mixer is equipped with a famous engine such as Caterpillar or Cummins.
4. This concrete mixing truck has two axles both in the front and back. It is very safe to be operated.
Main Parameters of 8 m3 Mixer Truck
| Model | ZZ5256GJBM3246C (8290) | ZZ5257GJBM3247C (8290) | |
| HDT5257GJB (8336) | ZZ5257GJBN3247C (8336) | ||
| Whole Vehicle Performance and Parameters | Chassis | STEYR KING | HOWO |
| Curb Weight (kg) | 12600 | 13500 | |
| Total Vehicle Weight (kg) | 25000 | 25000 | |
| Outline Dimension (L × B × H) (mm) | 8555 × 2490 × 3800 | 8715 × 2496 × 3800 | |
| Wheelbase (mm) | 3225+1350 | 3225+1350 | |
| Front Overhang (mm) | 1562 | 1500 | |
| Rear Overhang (mm) | 2419 | 2615 | |
| Min. Clearance Above Ground (mm) | 297 | 314 | |
| Max. Traveling Speed (km/h) | 75 | 90 | |
| Min. Turning Diameter (m) | 17.3 | 17.3 | |
| Oil Consumption per 100 km (Under Limited Conditions) | ≤ 25 | ≤ 25 | |
| Vehicle Configurations | Clutch | Dry Single Disc Clutch (φ430) | Dry Single Disc Clutch (φ430) |
| Gear Box | SINOTRUCK HW18709 | SINOTRUCK HW18709 | |
| Driving Type | 6 × 4 | 6 × 4 | |
| Steering Mechanism | ZF8098 | ZF8098 | |
| Service Brake | Dual-Circuit Air Brake | Dual-Circuit Air Brake | |
| Parking Braking | Spring-Powered Air-Cut-Off Brake | Spring-Powered Air-Cut-Off Brake | |
| Auxiliary Brake | Engine Exhaust Brake | Engine Exhaust Brake | |
| Tyre | 12.00 (R)-20 | 12.00 (R)-20 | |
| Engine Parameters | Model | WD615.95 (E); WD615.96 (E) | WD615.95 (E); WD615.96 (E) |
| Type | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine | In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine | |
| Emission Standard | Euro III | Euro III | |
| Discharge Capacity (L) | 9.726L | 9.726L | |
| Power (kw) | 290 HP, 336 HP (2200 r/min) | 290 HP, 336 HP (2200 r/min) | |
| Max. Torque | 1350 N. m (1100-1600 r/min) | 1350 N. m (1100-1600 r/min) | |
| Mixing Drum Parameters | Geometric Volume of Mixing Drum (m3) | 12.8 | 12.8 |
| Max. Mixing Cubage (m3) | 8-8.8 | 8-8.8 | |
| Feeding Speed (m3) | ≥ 3 | ≥ 3 | |
| Discharging Speed (≥ m3) | ≥ 1.5 | ≥ 1.5 | |
| Leftover Rate | ≤ 0.5% | ≤ 0.5% | |
| Max. Rotating Speed (r/min) | 14-16 | 14-16 | |
| Mixing Drum Obliquity (°) | 15 | 15 | |
| Max. Mixing Drum Diameter (mm) | φ2162 | φ2162 | |
| Driving System | Speed Reducer | Italian BONFILI-577L | Italian BONFILI-577L |
| Hydraulic Pump | US EATON5423-518 | US EATON5423-518 | |
| Hydraulic Motor | US EATON4633-045 | US EATON4633-045 | |
| Radiator | German AKG with Vacuum Meter | German AKG with Vacuum Meter | |
| Water Supply System | Water Tank Capacity (L) | 260 | 260 |
| Water Supply Mode | Water Pump; Pneumatic Pump | Water Pump; Pneumatic Pump | |
Auhui Hualing Automobile Co., Ltd is a leading manufacturer and supplier of 8 m3concrete mixers in China. In addition to this mixer truck, our products also cover heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, auto parts assembly series such as heavy axles, and so on. With decades of experience and R & D ability, 8 m3 concrete mixers are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc.
